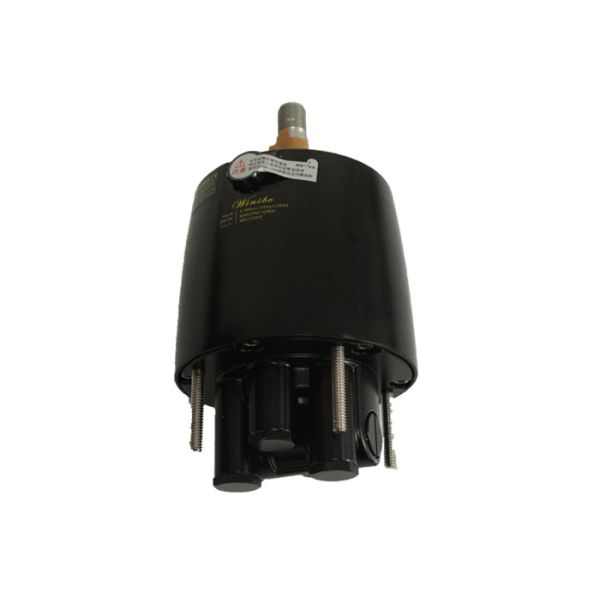

ZA0350 Version 2.0 Marine Hydraulic Steering Kit For 600HP Engine

Product Categories

Xiamen Ollwinner Industry & Trade Co.,Ltd

Contact Now

Name: ZA0350 Version 20 Marine Hydraulic Steering Kit For 600HP Engine
Brand: Winibo
Price: 1 USD

Brand Name : Winibo

Model Number : ZAS0350 V2

Place of Origin : China

MOQ : 1 set

Price : negotiable

Supply Ability : 1000 pcs per month

Packaging Details : one pcs per carton; carton size: 60*30*20cm

Pump : 27 cc/rev

Plunger number : 7

Helm Max-pressure : 69 kgf/cm3

cylinder volume : 141.1 cc

cylinder tube I.D : 35 mm

cylinder rode I.D : 18

Cylinder output Force : 468 kgf

Strode : 214 mm

Handover to handover : 5.5 times

Steering wheel diameter : 320-540mm

Contact Now

ZA0350 Version 2.0 Marine Hydraulic Steering Kit for engines up to 600HP

* Suitable for model up to 600hp Cylinder. Can be used for dual 300hp engines at maximum

* Helm pump and two tubes in length of 8 meters for each, Steering Wheel(selectable), two packs of hydraulic oil,compact cylinder are included

* Bore diameter:35mm Piston rod diameter:19mm Plunger number: 7 Handover to handover: 5.5times

* This kit is universal fitted for almost all the models(Evinrude, Mercury, Volve, Yamaha, SUZUKI, HONDA,TOHATSU etc.)

* It can be installed easily and fast. A step by step manual is included.

**Technical Data**
Volume	Tube I.D	Rod I.D	Output Force
141.1cc	35mm	18mm	458 kgf
Strode	Application	Plunger	Turns lock-to-lock
214mm	UP to 300HP	7	5.5 times

ZA0350 Version 2.0 Marine Hydraulic Steering Kit For 600HP Engine
